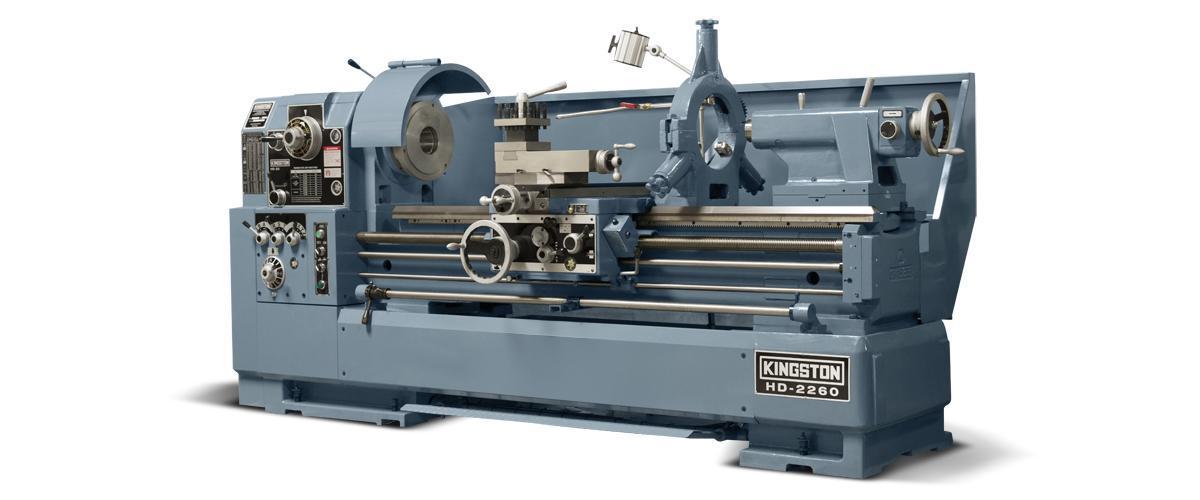

1 – NEW KINGSTON LARGE BORE HIGH SPEED PRECISION GAP BED LATHE, MODEL #: HD-26120

SPECIFICATIONS
FILES & ATTACHMENTS

Swing Over Bed	26 inches
Swing Over Cross Slide	17.5 inches
Swing In Gap	35.1 inches
Gap Width in Front of the Face Plate	10.625 inches
Distance Between Centers	120 inches
Width of Bed	15.75 inches
Height of Center from Leg Bottom	44.3 inches

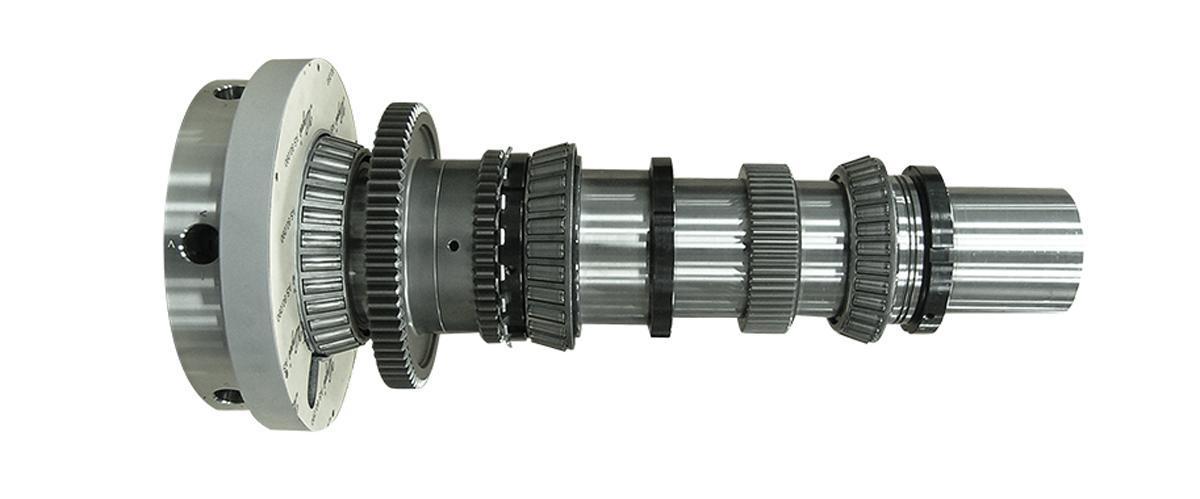

Spindle Bore	4.0625 inches
Taper of spindle bore and center	MT#7 x #5
Type of Spindle Nose	D1-11

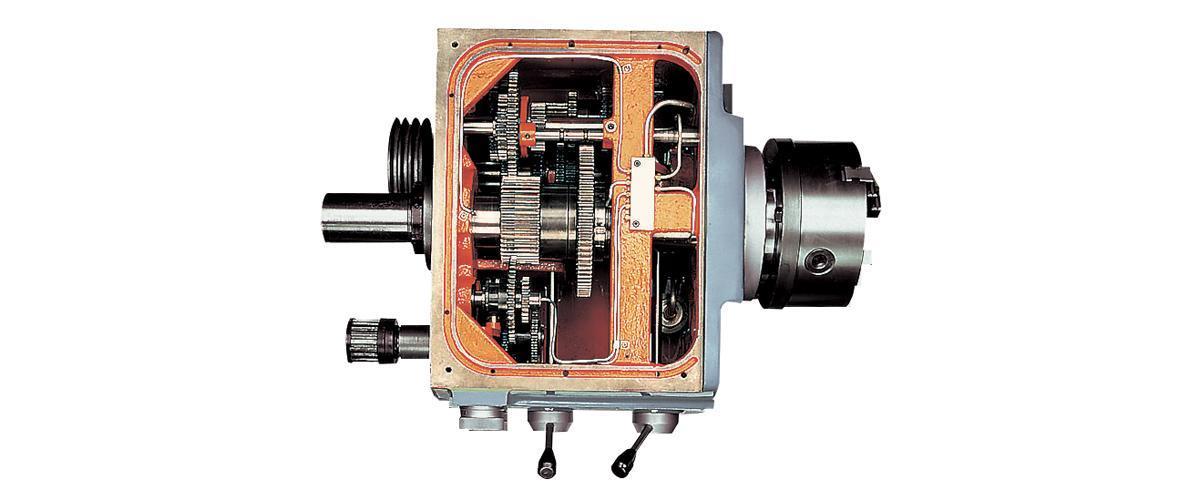

Number of Spindle Speeds	12
Spindle Speed	13-1,200 RPM
Number of Feed Changes	16
Feeds per revolution – Longitudinal	0.0012″-0.039″
Feeds per revolution – Cross	0.0007″ – 0.0188″
Leadscrew Diameter & Threads Per Inch	1.77″ , 2 TPI
Range of Inch Threads	1-42 TPI (48)
Range of Metric Pitches	0.2 – 14 (39)
Maximum Travel of Compound	9.5 inches
Maximum Travel of Cross Slide	15.8 inches

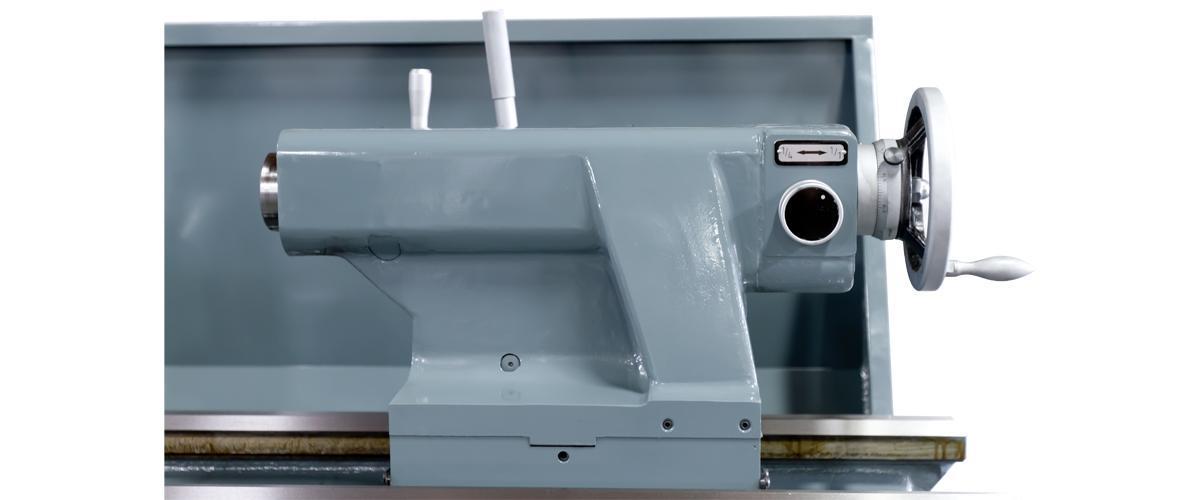

Tailstock Quill Travel	9.8 inches
Tailstock Quill Diameter	2.9 inches
Taper in Tailstock Quill	M.T. #5

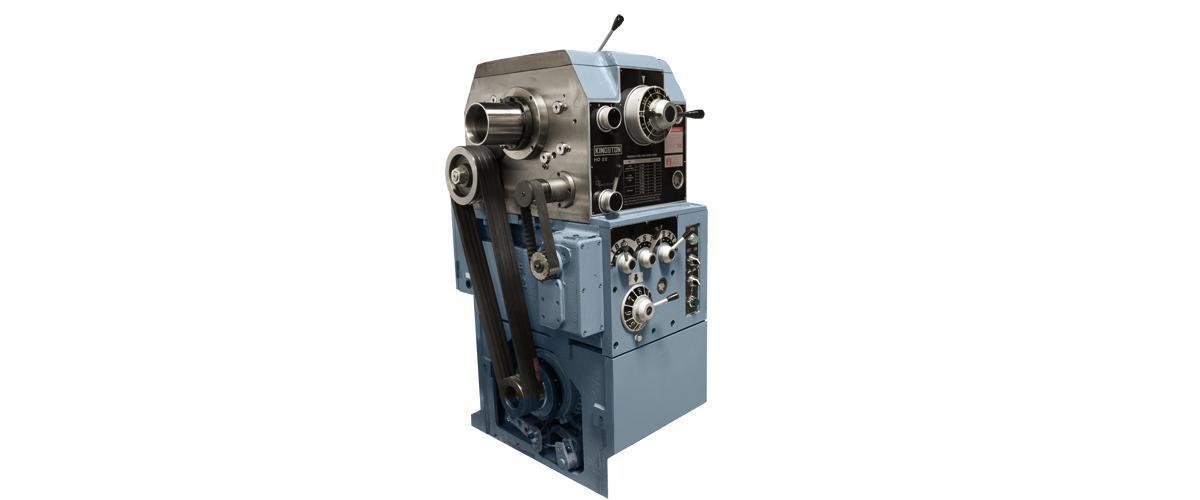

Main Drive Motor	15 HP
Coolant Pump Motor	1/8 HP
Floor Space	W: 47″ L: 177″
Machine Weight	7000 pounds

Equipped With

EQUIPPED WITH:

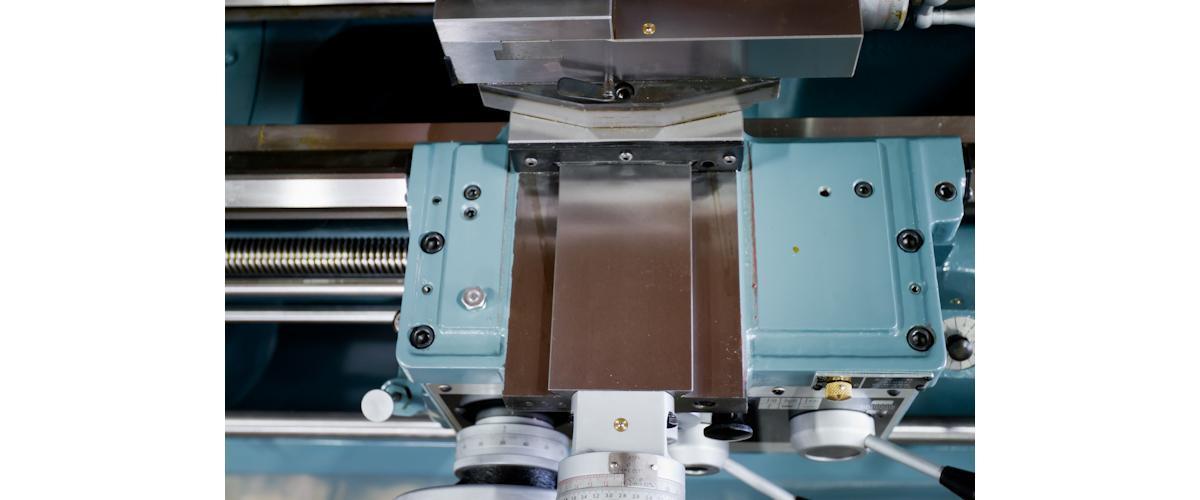

• Hardened & Ground Bed & Cross Slide Ways

• Thread Chasing Dial

• Automatic Longitudinal Feed Stop Bar

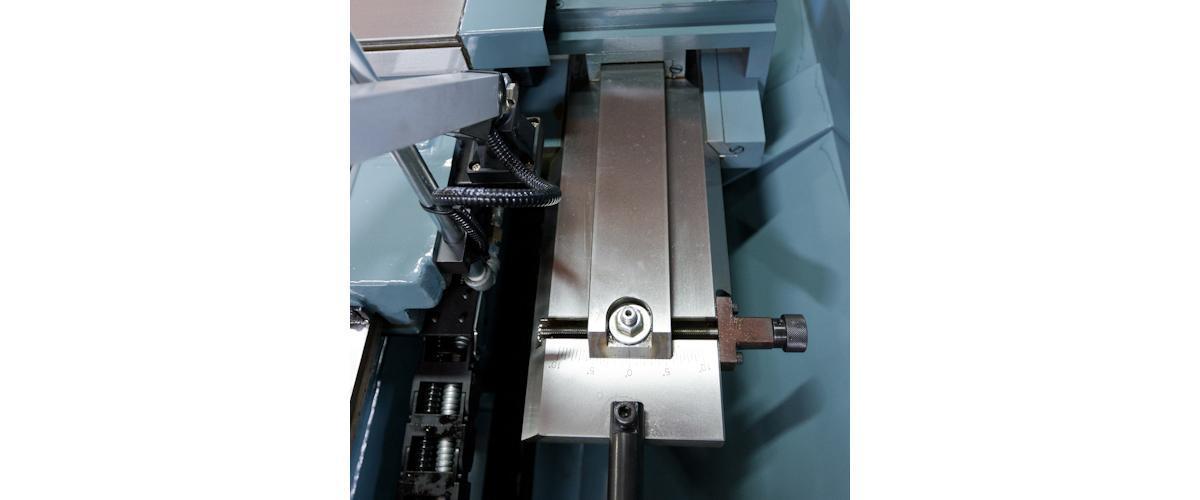

• 4-Way Tool Post Fitted To T-Slotted Compound

• LED Work Light

• 10” Steady Rest with Roller Jaws

• Z-Axis Rapid Traverse (Except 35” & 60” C.C.)

• Chuck Guard

• Headstock Spindle Center Adaptor: MT#7 to #5

• Ground Steel Center MT#5 For Headstock

• 12" Back Plate

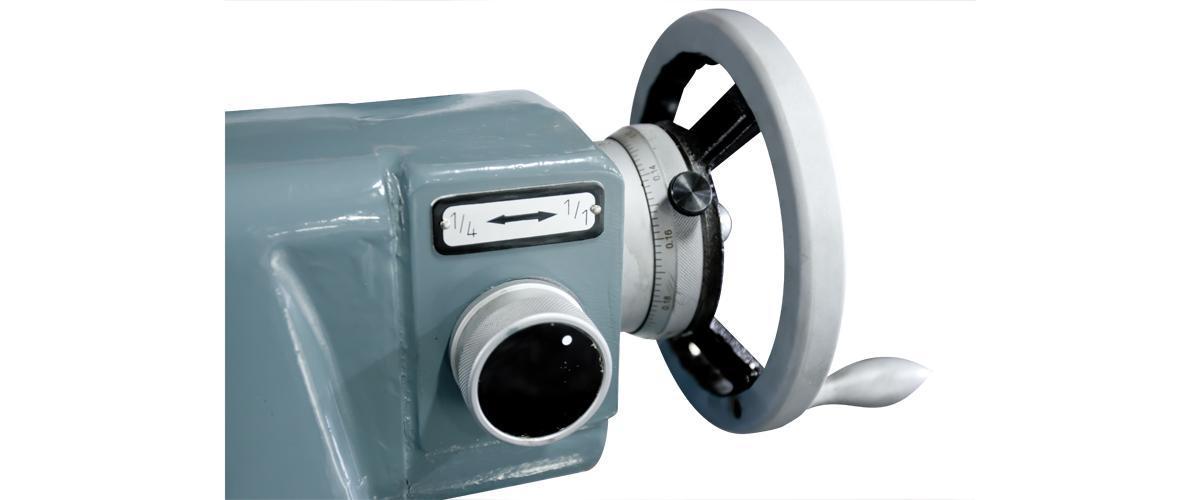

• Two-Speed Drive Tailstock Spindle (MT#5)

• Coolant System with Pump and Piping

• Full Length Splash Guard

• Pull Drawer Chip (Oil) Pan

• Tool Box w/ Necessary Wrenches & Spanners

• Instruction Manual & Parts List

• Emergency Stop Button

NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION.
OPTIONAL FEATURES:

• Additional 10" Steady Rest with Roller Jaws (Min. Capacity 1.6") $3,500

• 15" Steady Rest with Roller Jaws (Min. Capacity 7.5") $3,900

• 7" Follow Rest $1,500

• Telescopic Taper Turning Attachment $5,900

• Z-axis Rapid Traverse on 35” or 60” Bed $3,500

• Micro Carriage Stop $ 450

• Turret Carriage Stop $ 450

• Tailstock Complete Crank Assembly $ 400

• Convert Cross Feed Screw (HD-22 to 5 TPI, HD-26 to 8 TPI) $1,250

• Aloris CA Tool Post Only $ 975

• Aloris CA Tool Post plus 6 Tool Holders (set #4) $1,950

• Aloris DA Tool Post Only $1,350

• Aloris DA Tool Post plus 6 Tool Holders (set #5) $2,595

• Newall 2-Axis Digital Readout + Installation (Net):
35” C.C. $3,800 + $550

60” C.C. $3,900 + $550

90” C.C. $5,800 + $650

120” C.C. $6,000 + $750

160” C.C. $7,200 + $850

• Chucks Upon Request

SAFETY ACCESSORIES:

• Add Limit Switch to Chuck Guard $ 150

• Clear Lexan Chuck Guard [Installed] $ 495

• Leadscrew Guard [60” / 90” Lengths Only] $1050 / $1150

• Travelguard Tool Post Guard [Kingston Installation] $ 540

• Heavy Duty Tool Post Guard [Factory Installation Only] $2,000

• NRTL / UL Ready [UL/NFPA standards, No Certification] Upon Request

• NRTL / UL Certification Upon Request

DELIVERY:
SUBJECT TO PRIOR SALE
