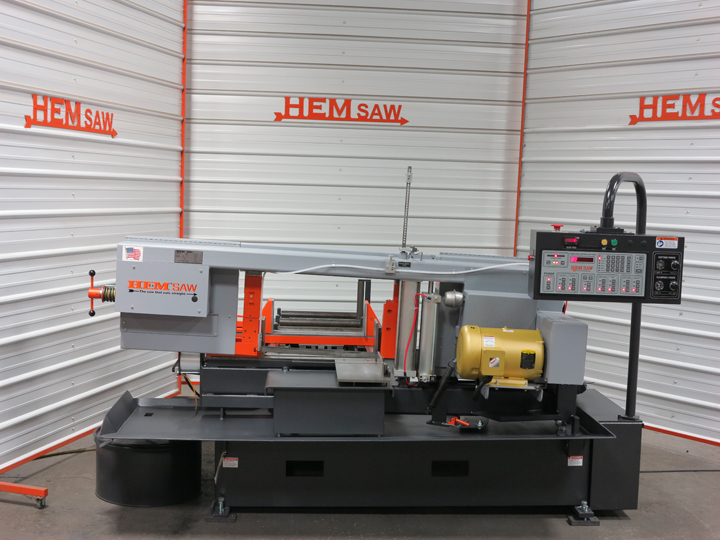

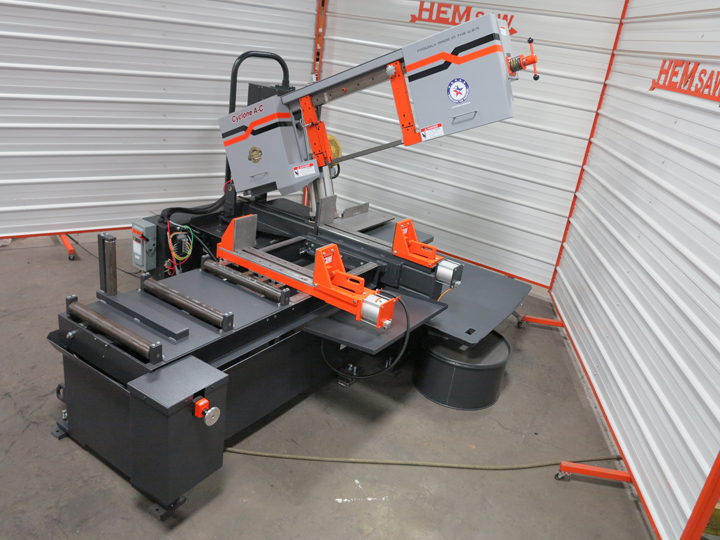

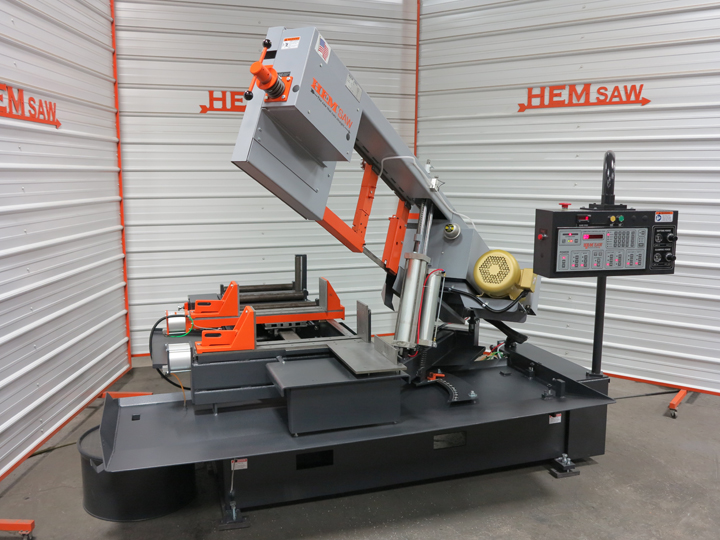

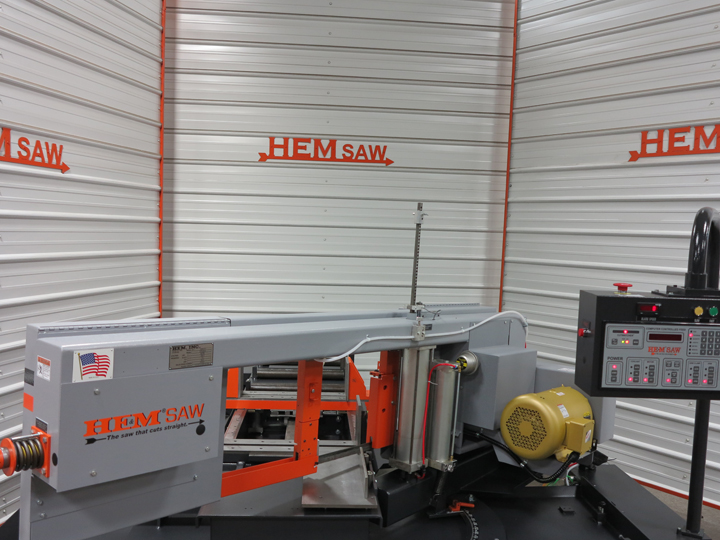

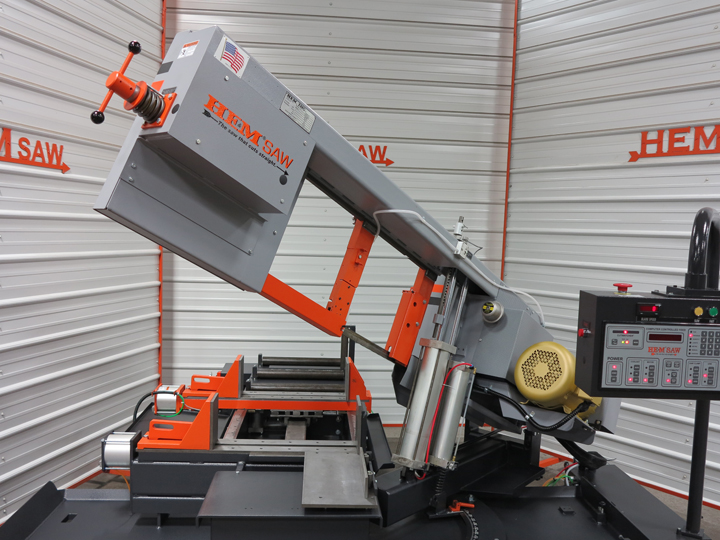

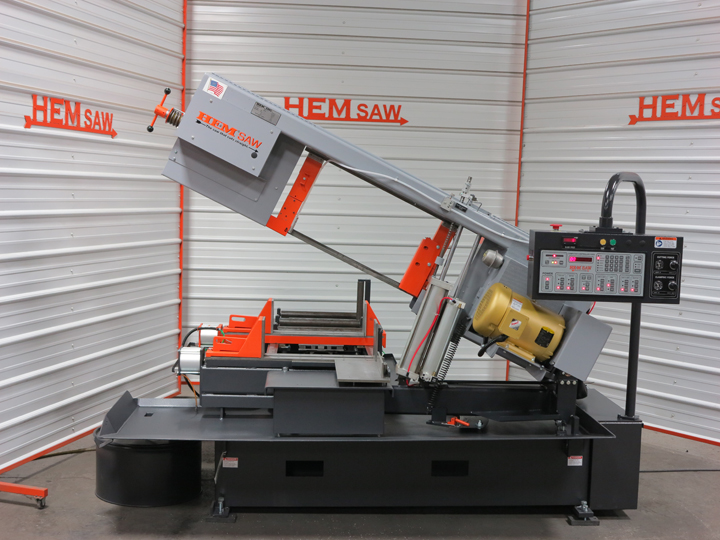

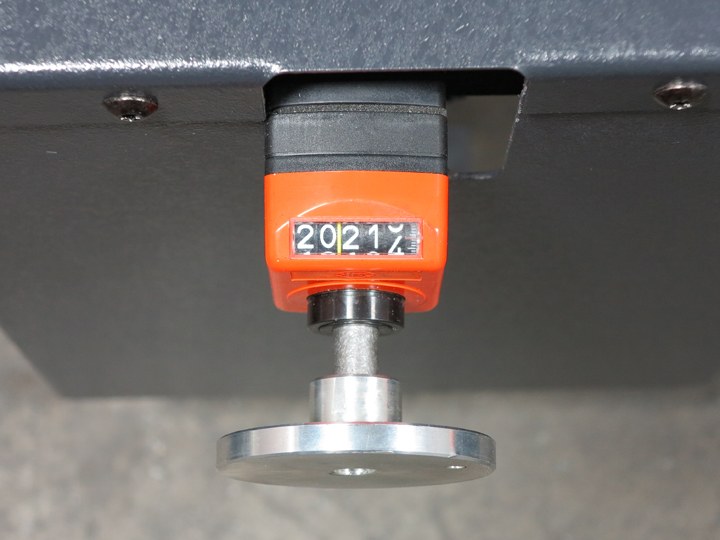

| Saw | Pivot Style, Miter Arm, Horizontal Band Saw |
| Saw Capacity | 22” W x 16" H |
| Miter | 15” W x 16" H @ 45˚ (L) (Miter in one direction only) |

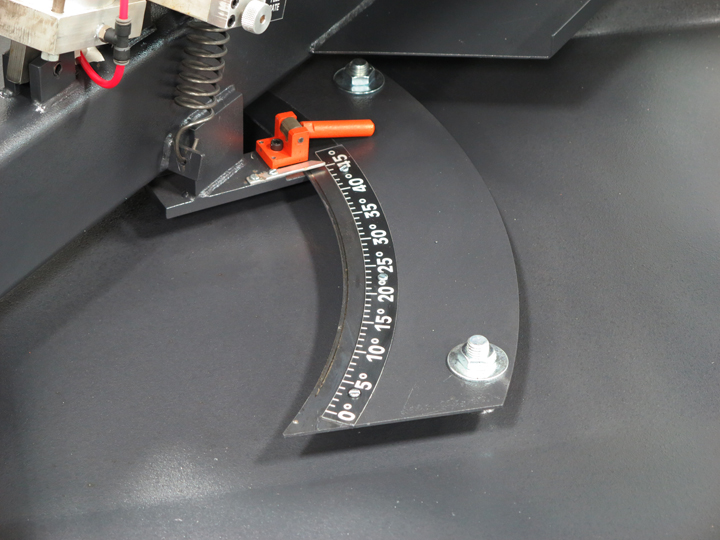

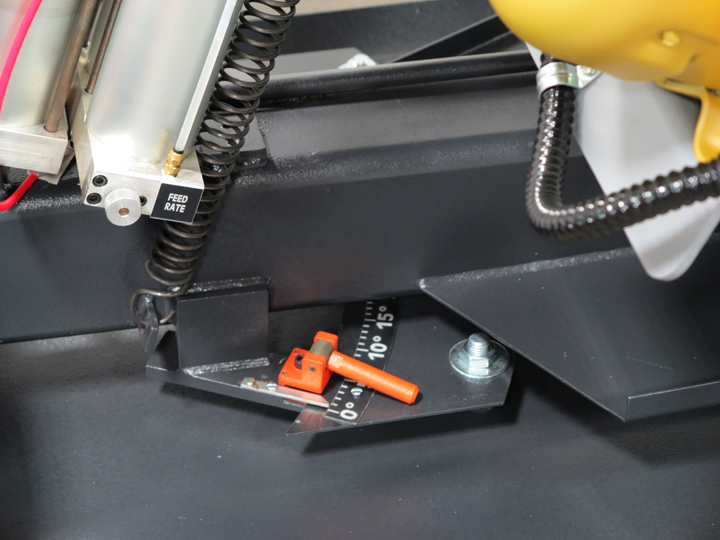

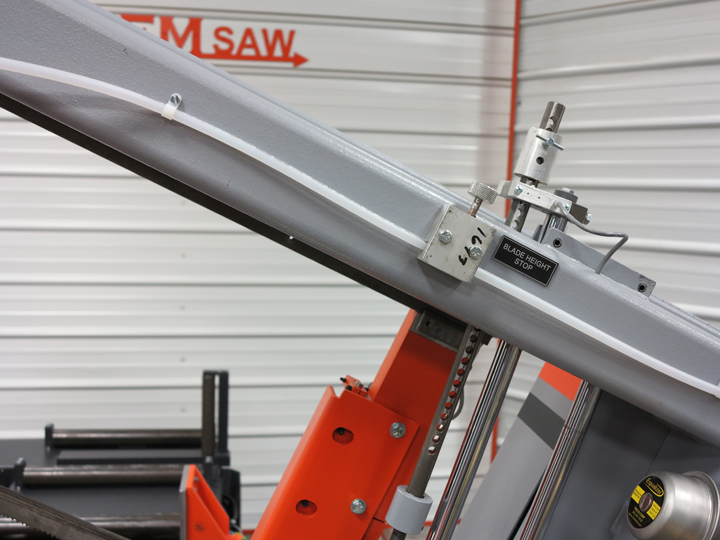

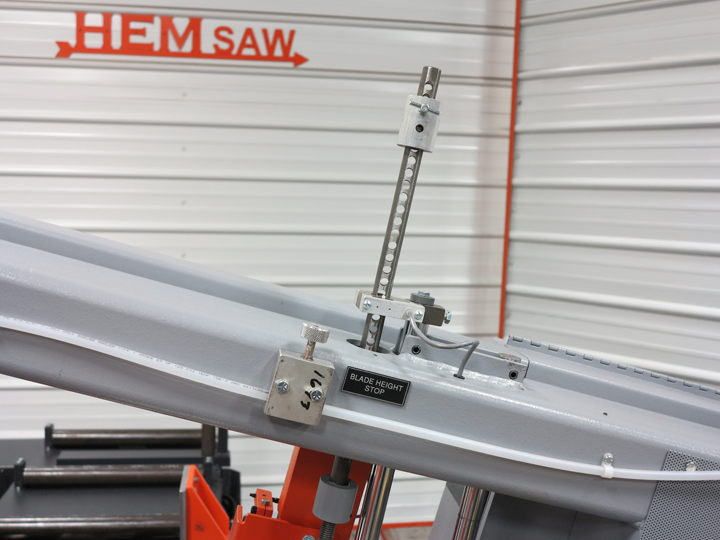

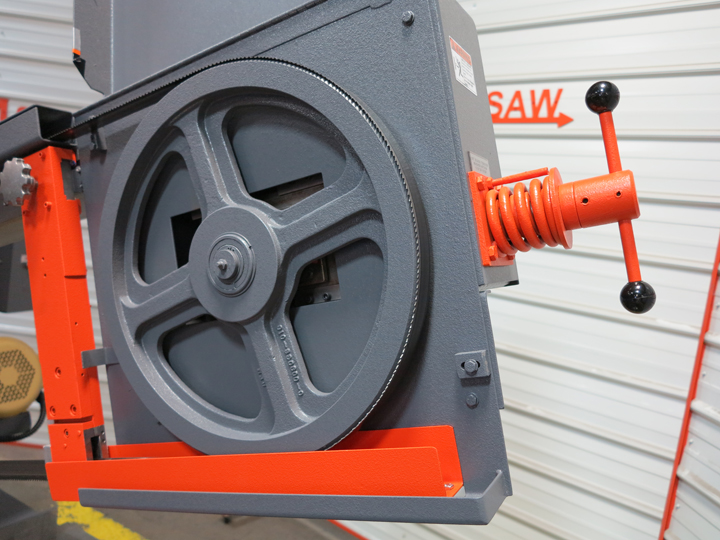

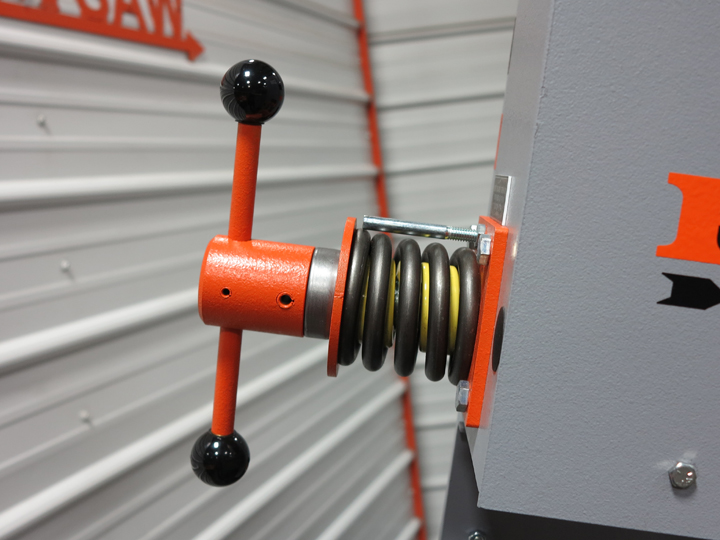

| Arm Miter | Release the camlock and move the saw head to the desired position and engage the camlock to lock the arm into place. |
| Arm Lift | Powered from control console. |
| Blade Size | 1-1/4” x 16’0” x .042” THK |

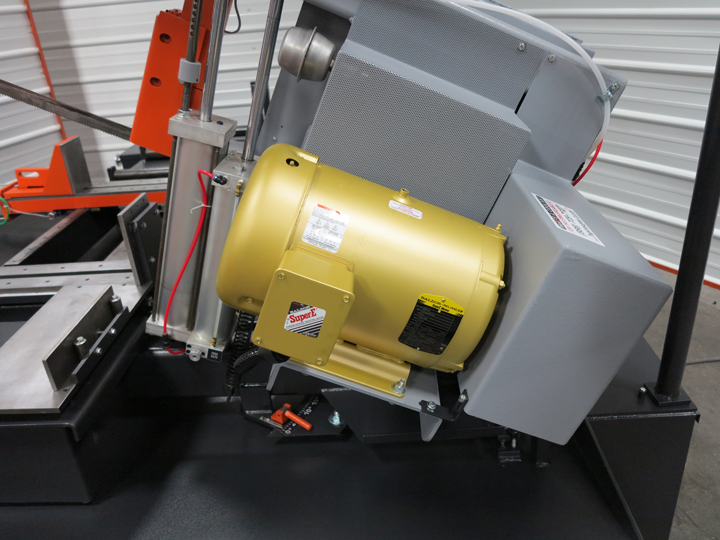

| Blade Drive | 7.5 HP, 220V (27 amps)/3PH or 440V (14 amps)/3PH Electrical Motor Requirement. 220V or 440V AC to be specified by the customer at the time of order. 1800 rpm, ball bearing TFC The customer must ground this saw at the machine with an earth ground rod installed prior to installation for the warranty to be in effect. |

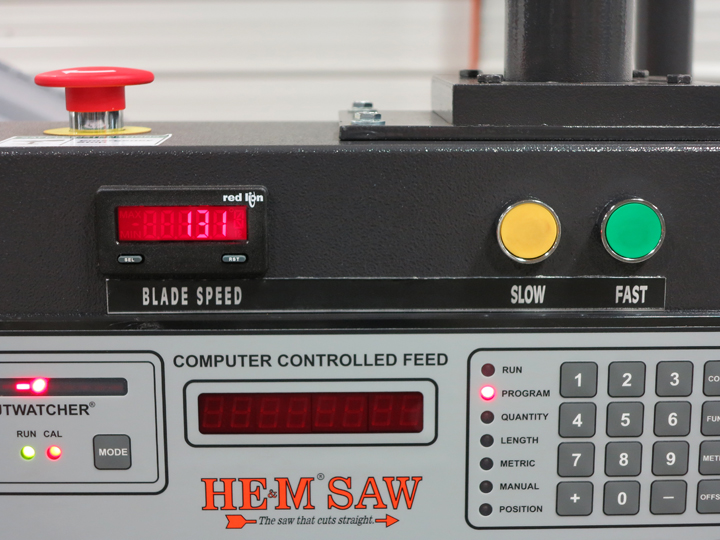

| Blade Speed | Infinitely variable speed drive controlled through a variable frequency controller and speed is changed from LED readout on console. |
| Air Requirements | 85 PSI, 3 – 5 CFM, equipped with air filter/lubricator |

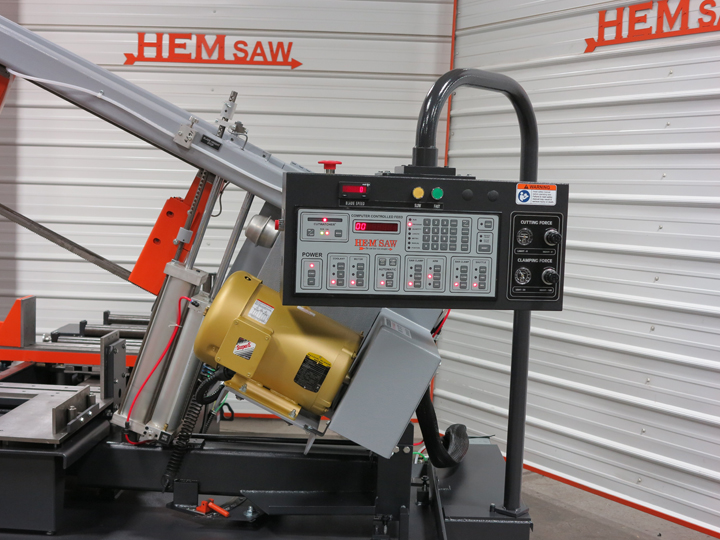

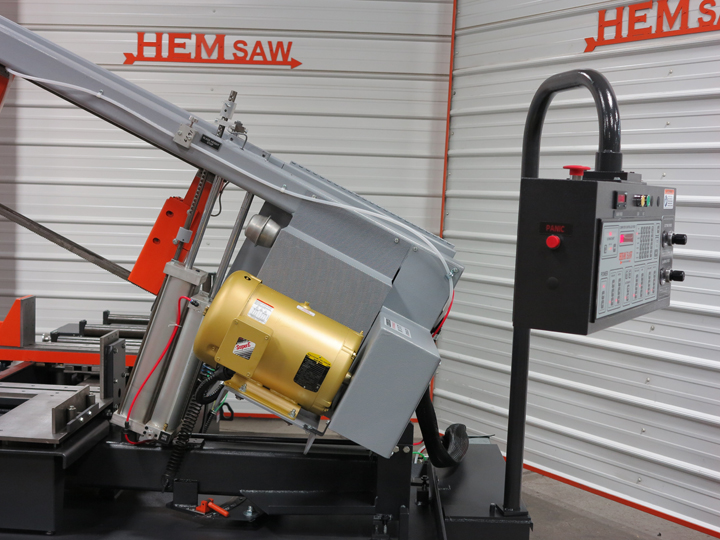

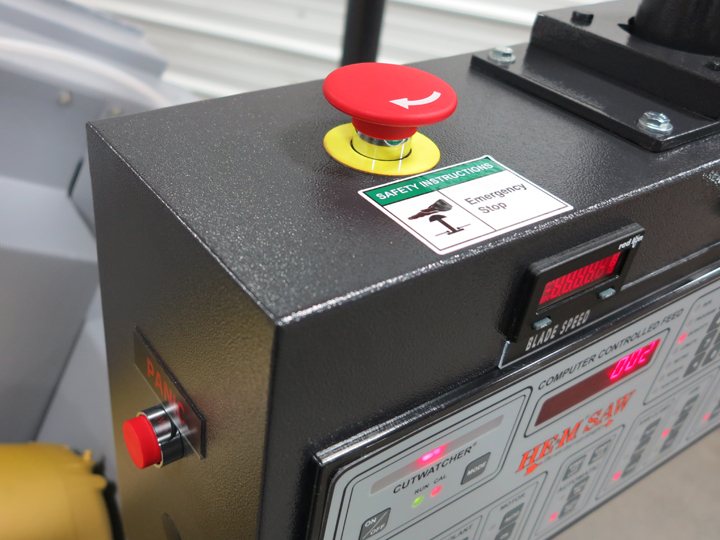

| Operator Control | Control Console is located in an Easy View style control on a gooseneck mount. The Control Console and gooseneck can each be pivoted for operator convenience. Saw may be operated in semi-automatic mode or fully automatic mode. |

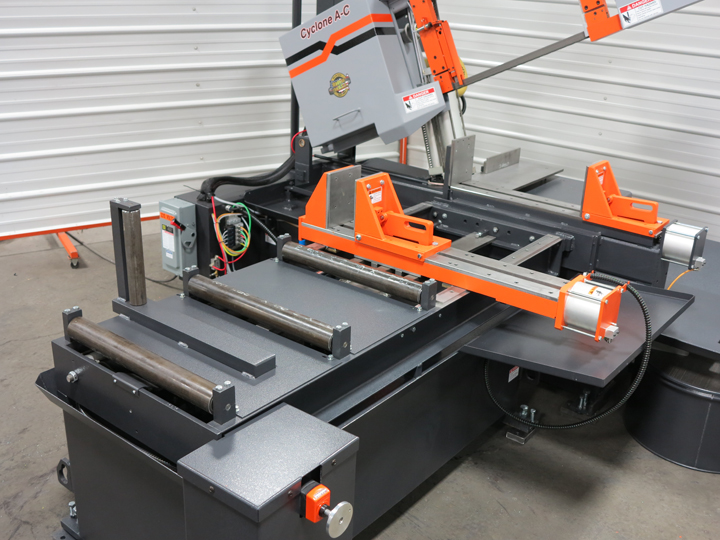

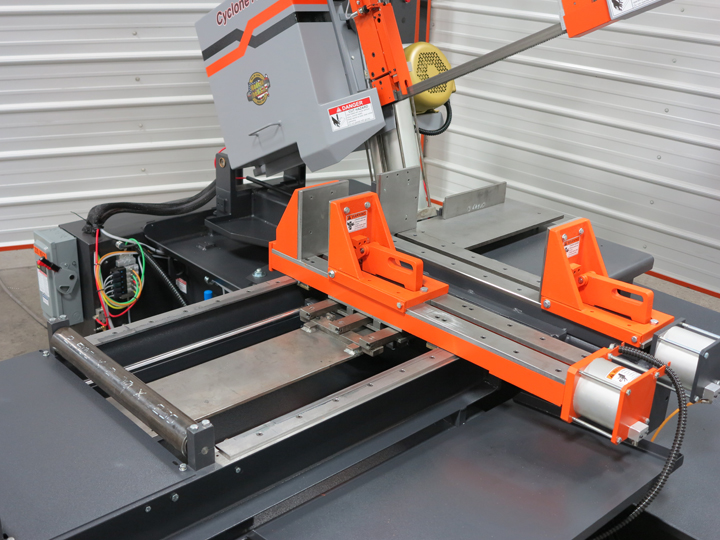

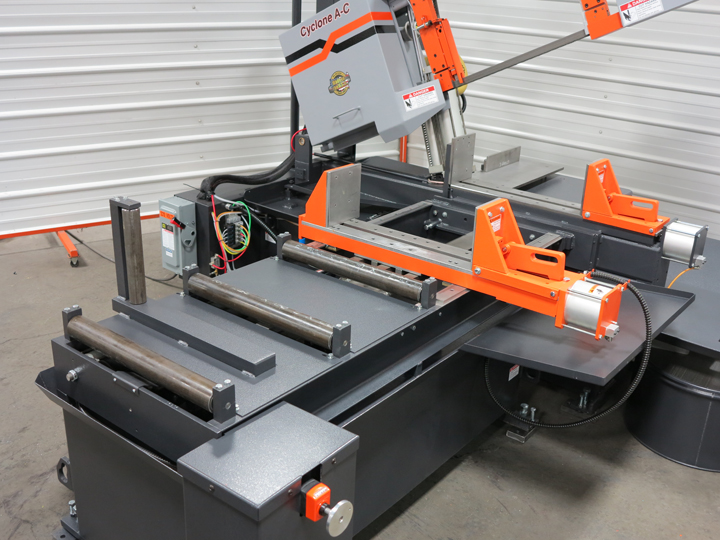

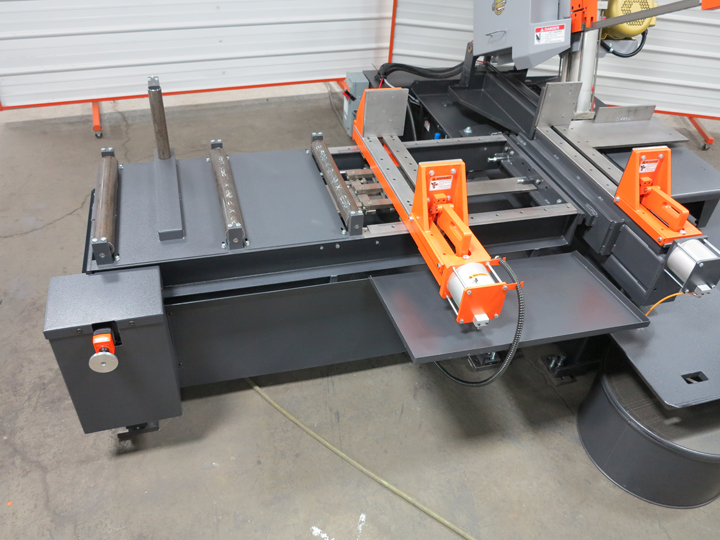

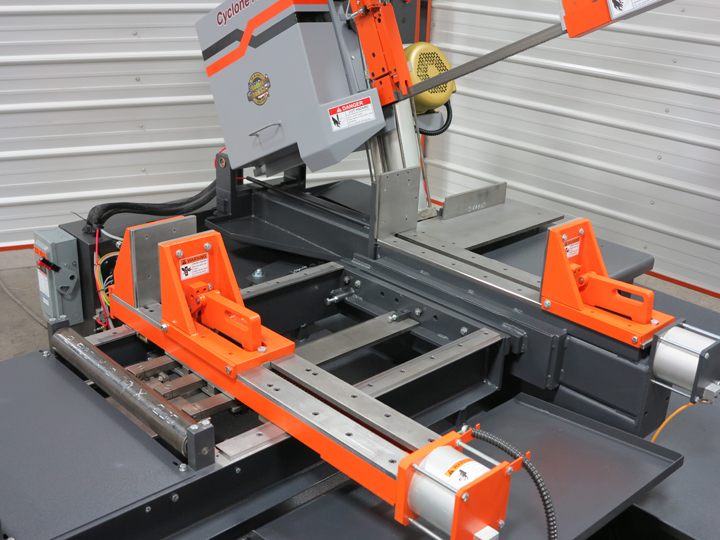

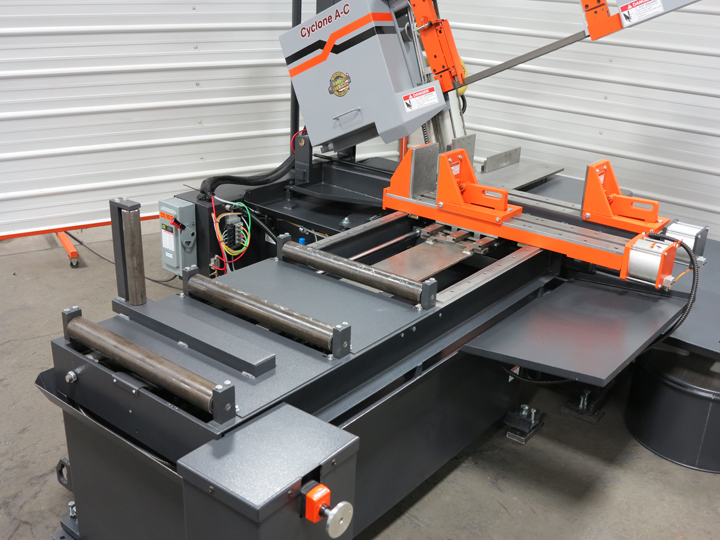

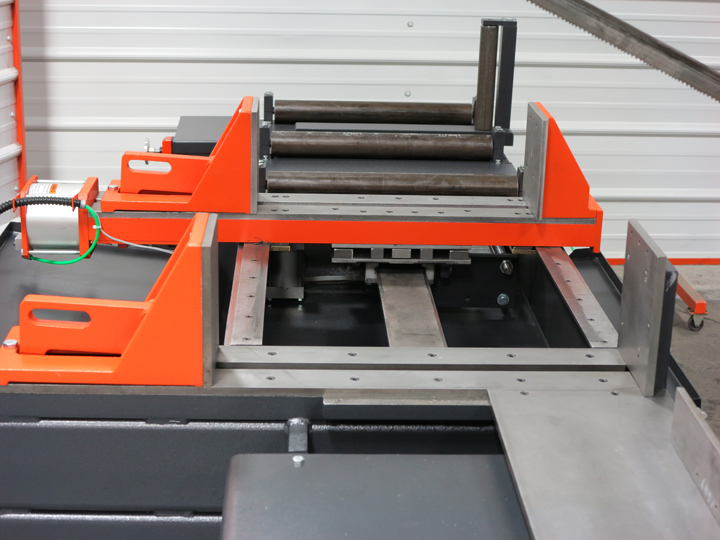

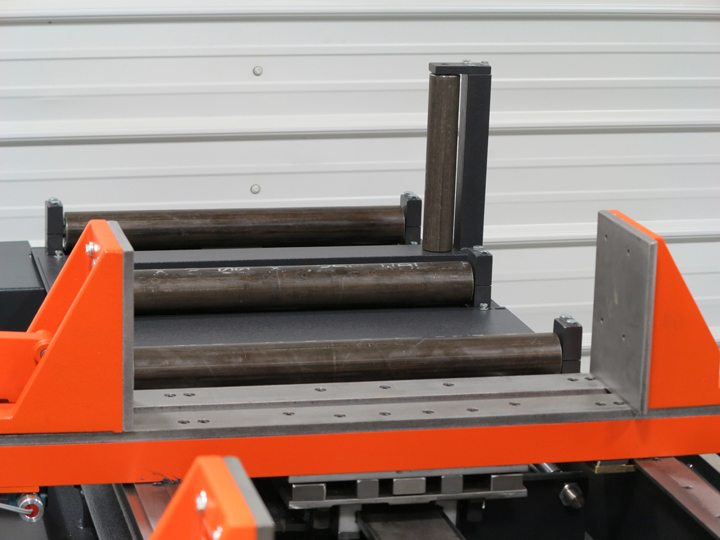

| Automatic 0-24” Stroke Bar-Feed (Multiple Index) | Automatic floating (self-adjusting) shuttle vise feed system with additional rollers to prevent binding of “crooked” and distorted material. The table is 6’ long with a 0-24” feed stroke. |

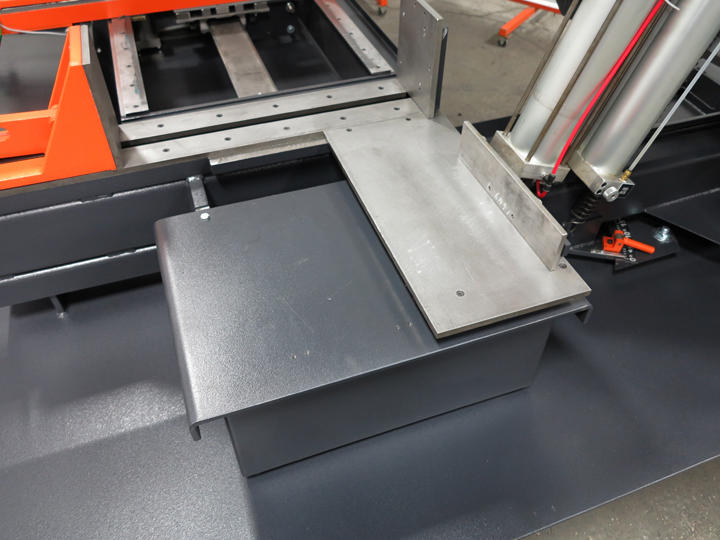

| Discharge Table | 24” Solid Discharge Support |
| Adjustable Main Vise | Main-clamping vise is air powered and non-cocking. |

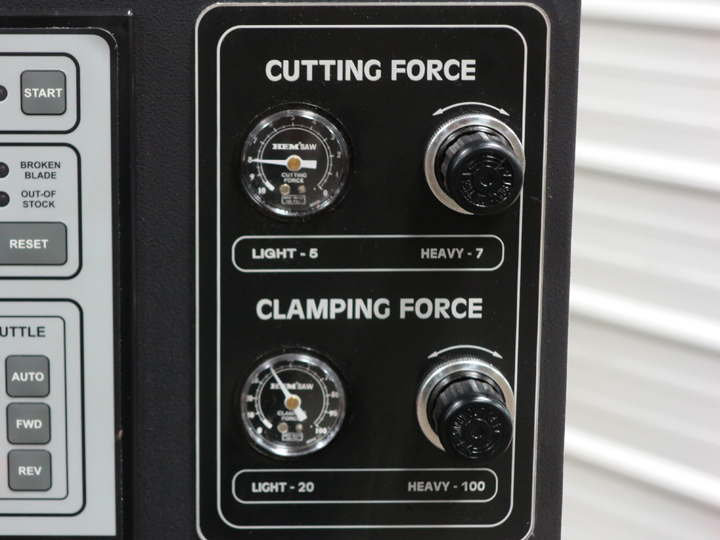

| Vise Clamping Pressure | The operator controls the variable vise pressure, adjustable to clamp various metals. |
| Cutting Pressure | Adjustable cutting pressure/force to control the weight to be placed on the teeth of the blade. |

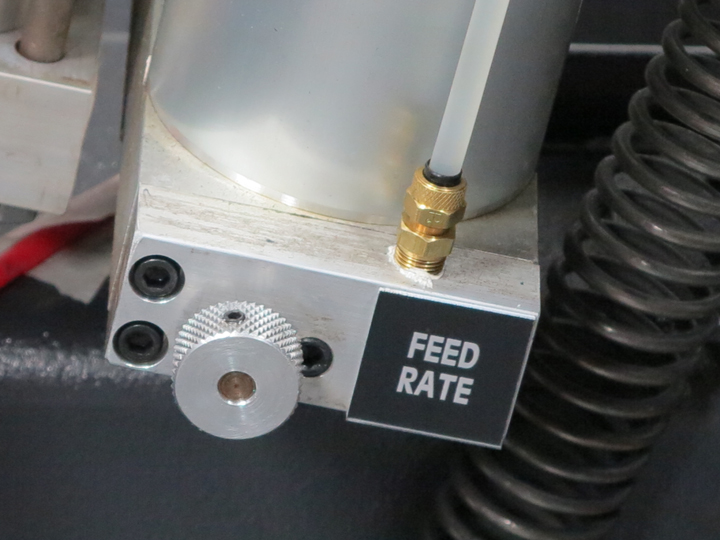

| Cutting Rate | Adjustable to regulate the saw arm traverse rate. This is a necessary feature to cut tubing at high rates without losing saw teeth. |

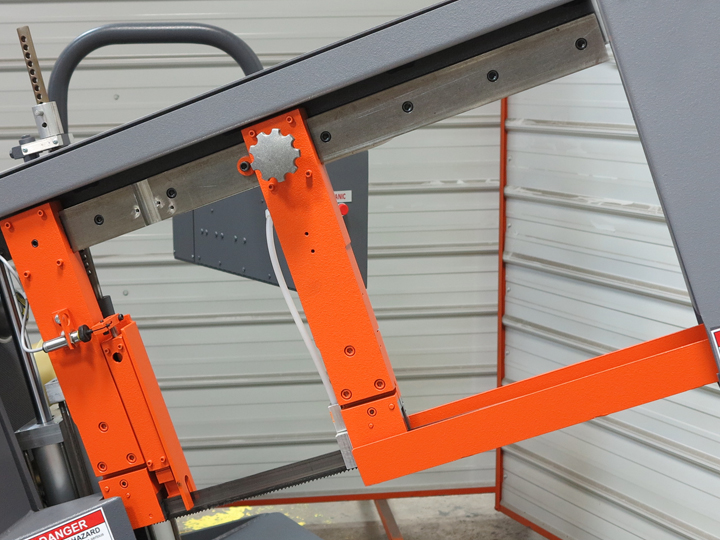

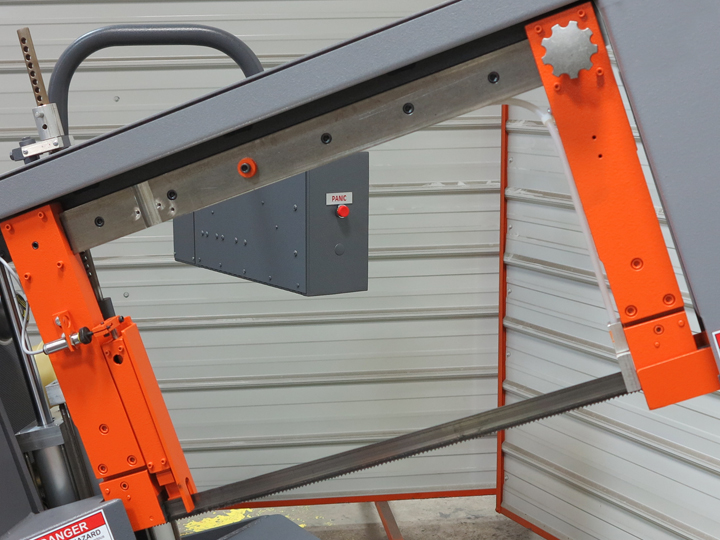

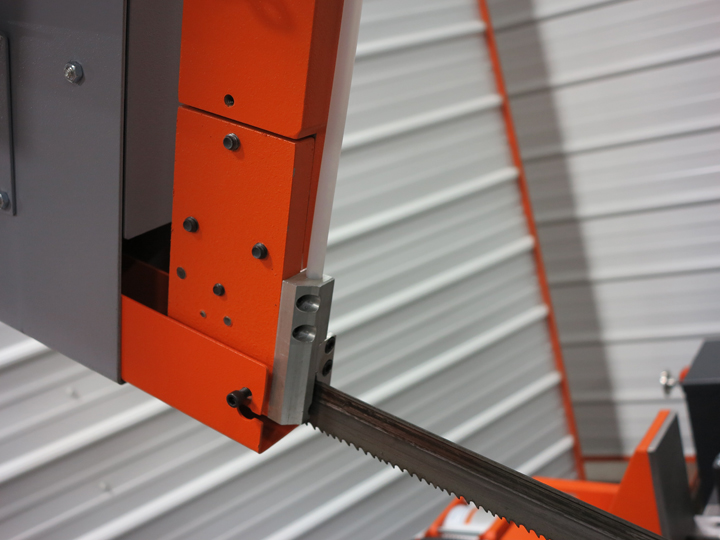

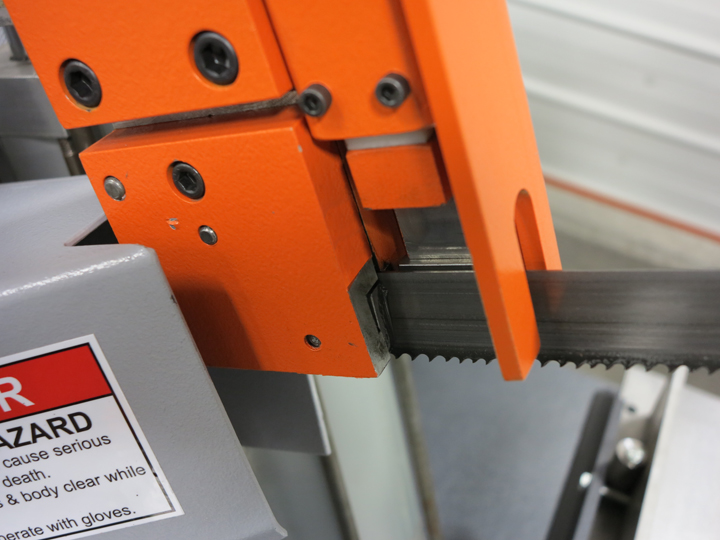

| Carbide Blade Guides | Side and back carbides are flat for maximum blade support. |

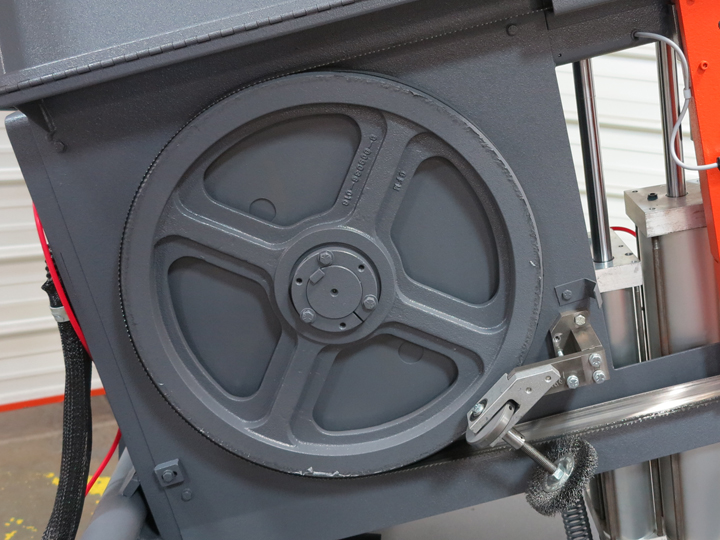

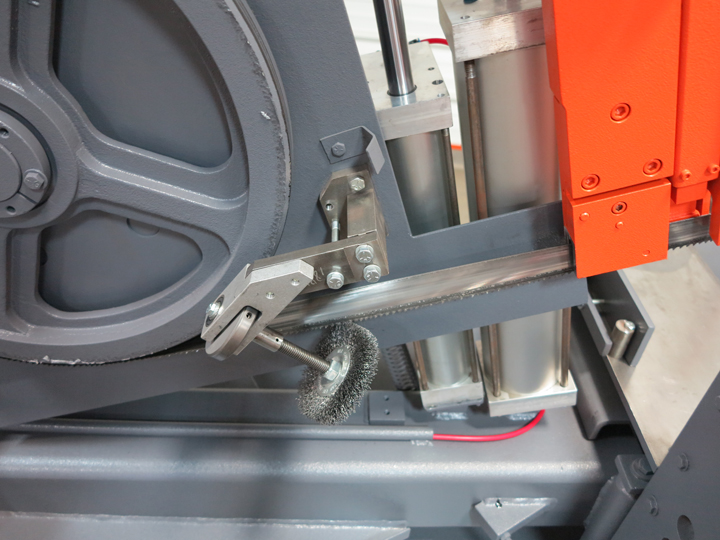

| Blade Chip Brush | Powered brush driven by an assembly mounted on the drive wheel removes chips that may become lodged in the blade gullets. |

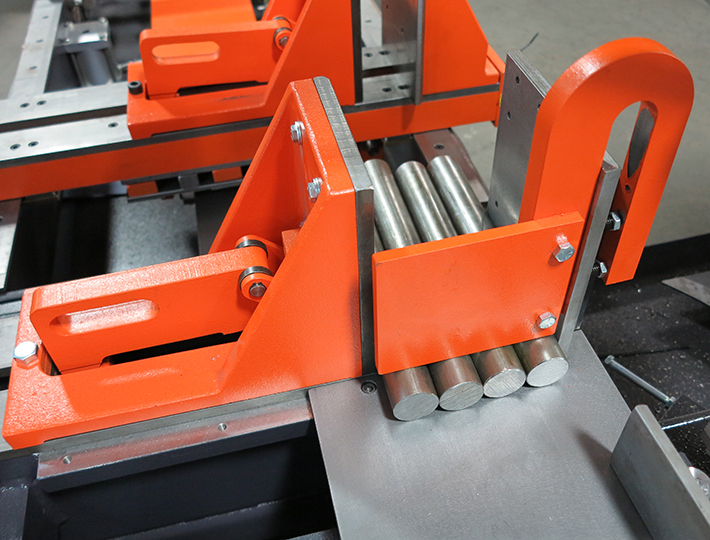

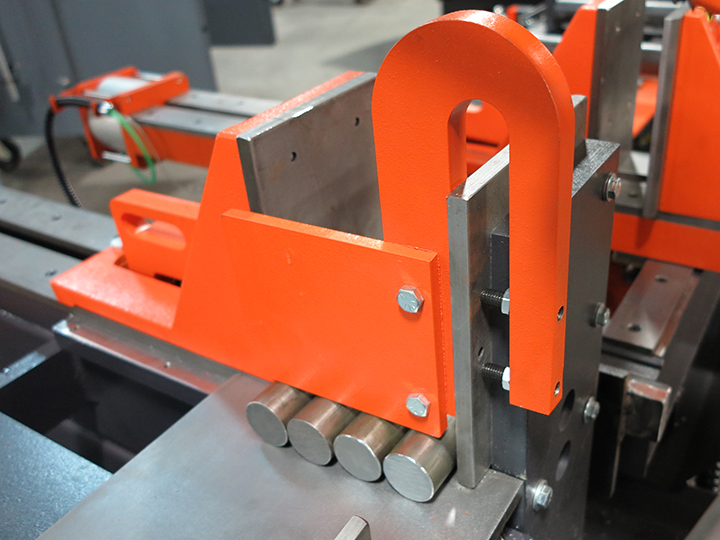

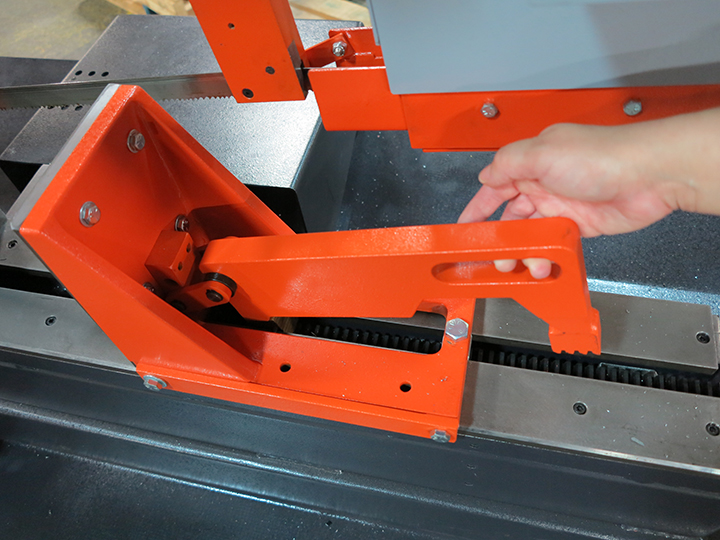

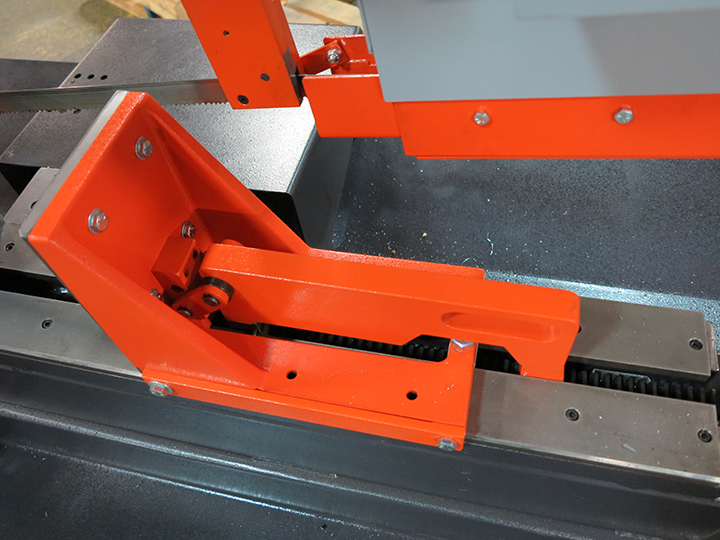

| Hold-Down Fixtures | Two each hold down fixtures that mount one on the main vise and one on the shuttle vise for use when cutting more than one piece at a time. |

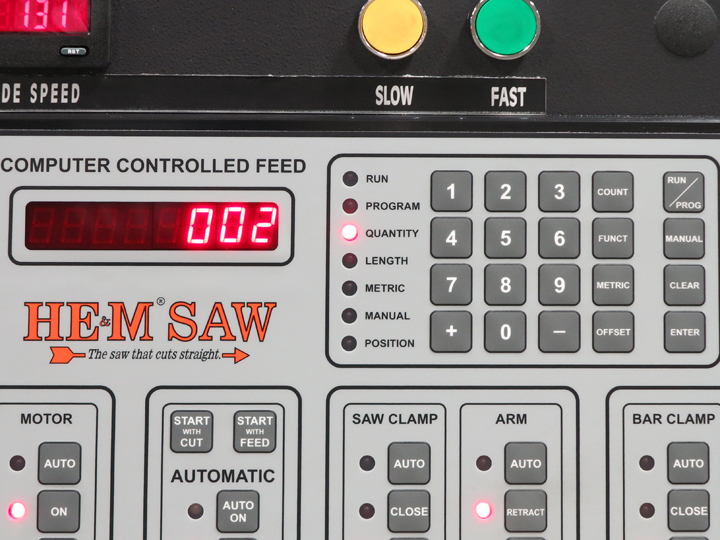

| Computer Controlled Feed System (CCF) | Programmable feed to automatically cut 99 different jobs of various lengths from the same bar. Keyboard entry of job number; number of parts to 999 pieces per job; parts length to 999.999 inches with automatic blade kerf compensation when “indexing”; choice of display to indicate number pieces cut, time per part; offset feature to correct length while blade is dulling; single source responsibility. HE&M Saw designed computer using 8031 processor. |

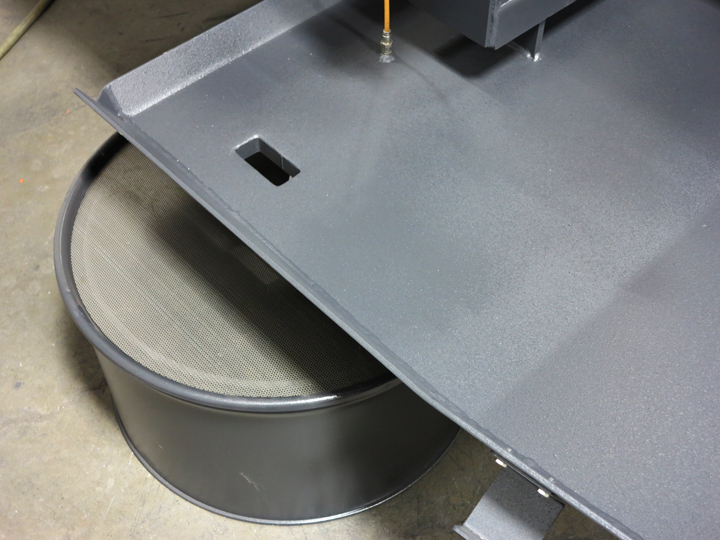

| Built-In Coolant System | Machine is set up for flood-style coolant system with coolant dispensed through the guide arms. The saw is fully panned to return coolant to the tank. |
| Wash-Down Hose | A cutting fluid clean-up hose is provided for machine wash down. |

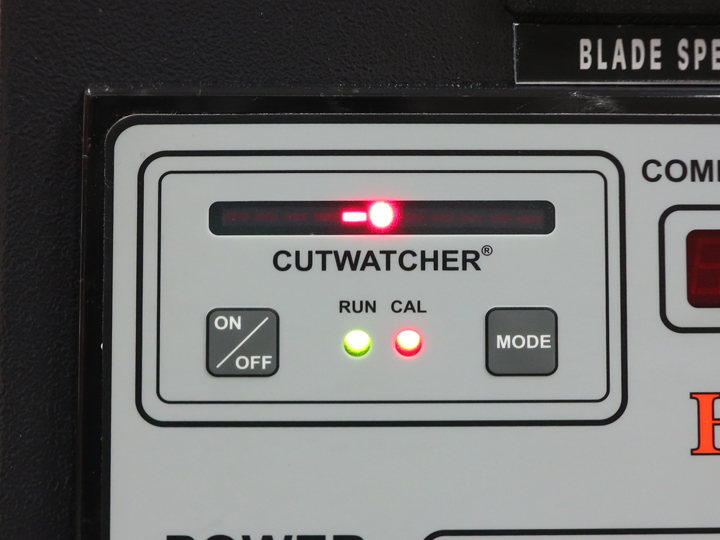

| Cut Watcher® System | A system that monitors the cut for squareness to a pre-set deviation value. The system shuts down the saw when the pre-set value is exceeded. This is a must option for production cutting. (PATENT: 5,070,751) |

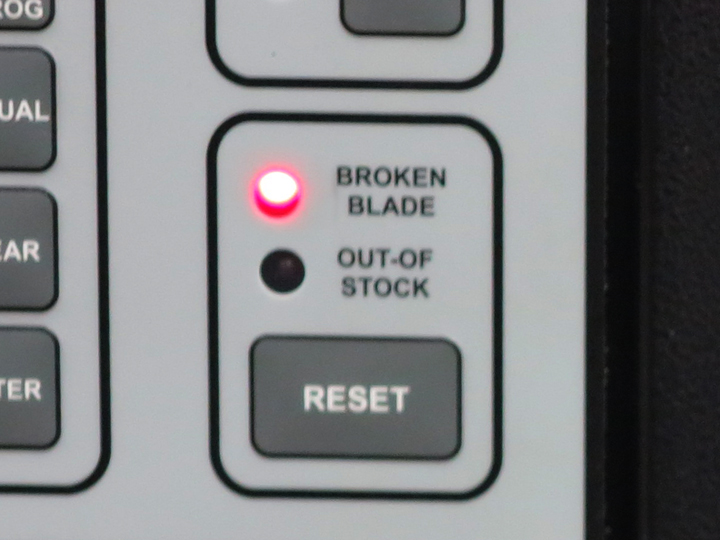

| Blade Break Switch | Saw will automatically shut off if the blade breaks. |
| Out-of-Stock Switch | The saw shuts off when the automatic feed system is out of stock, or when the pre-determined number of pieces has been cut. |
| Safety Guards | Machine is equipped with blade guards and awareness barriers for safety purposes. |
