(1) BAILEIGH POWERED SLIP ROLL MODEL SR-5016E

Brand
BAILEIGH

Model
SR-5016E

Stock #
82300

Condition
New

Year
N/A

Forming Width 51 inches
Roll Speed 16 RPM
Upper Roll Diameter 3 inches
Minimum Forming Diameter 4.5 inches
Mild Steel Capacity 16 Ga. (1.5mm)

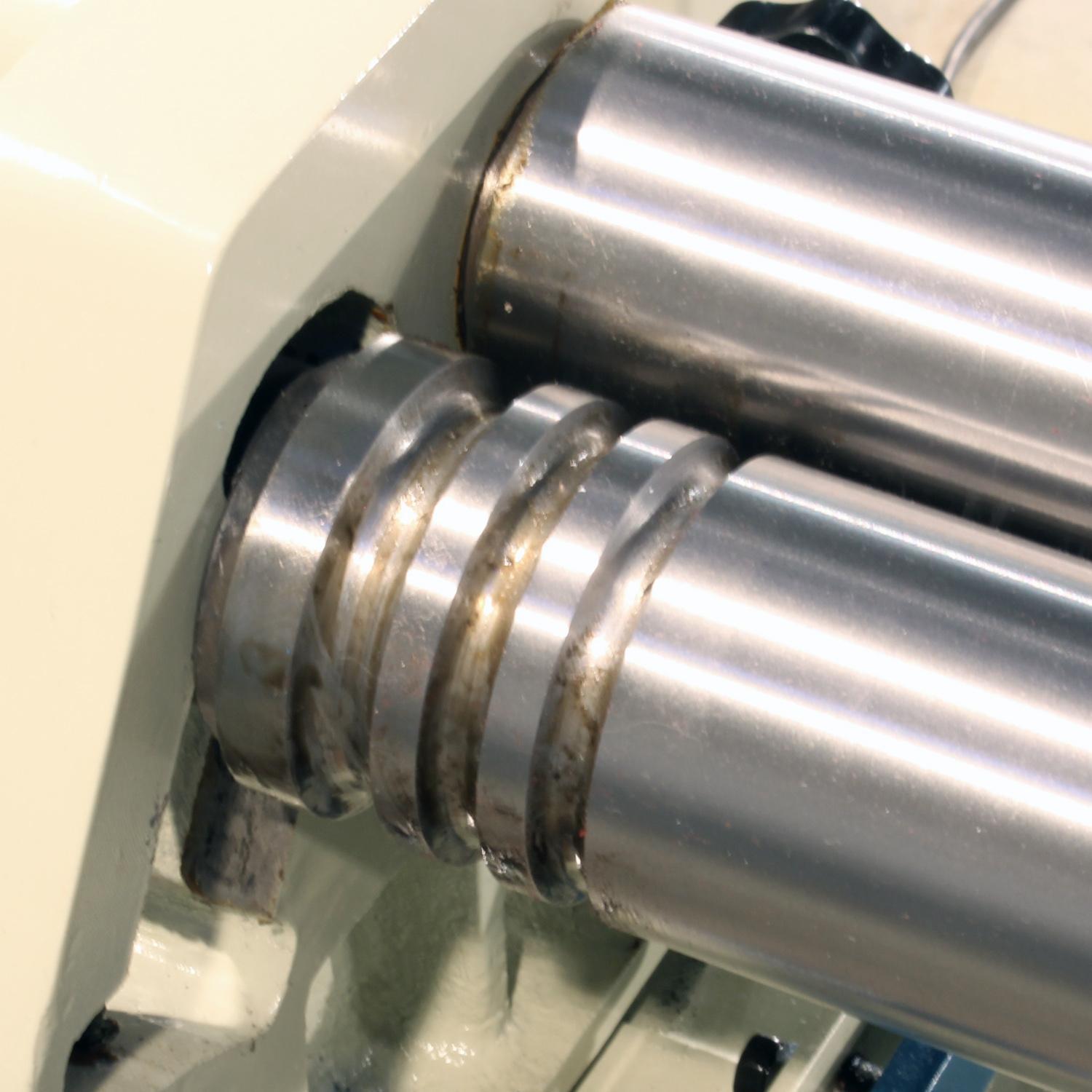

Wire Grooves .335", .407", .512" (8.5mm, 10.3mm, 13mm)
Power 110V, 60hz 15A

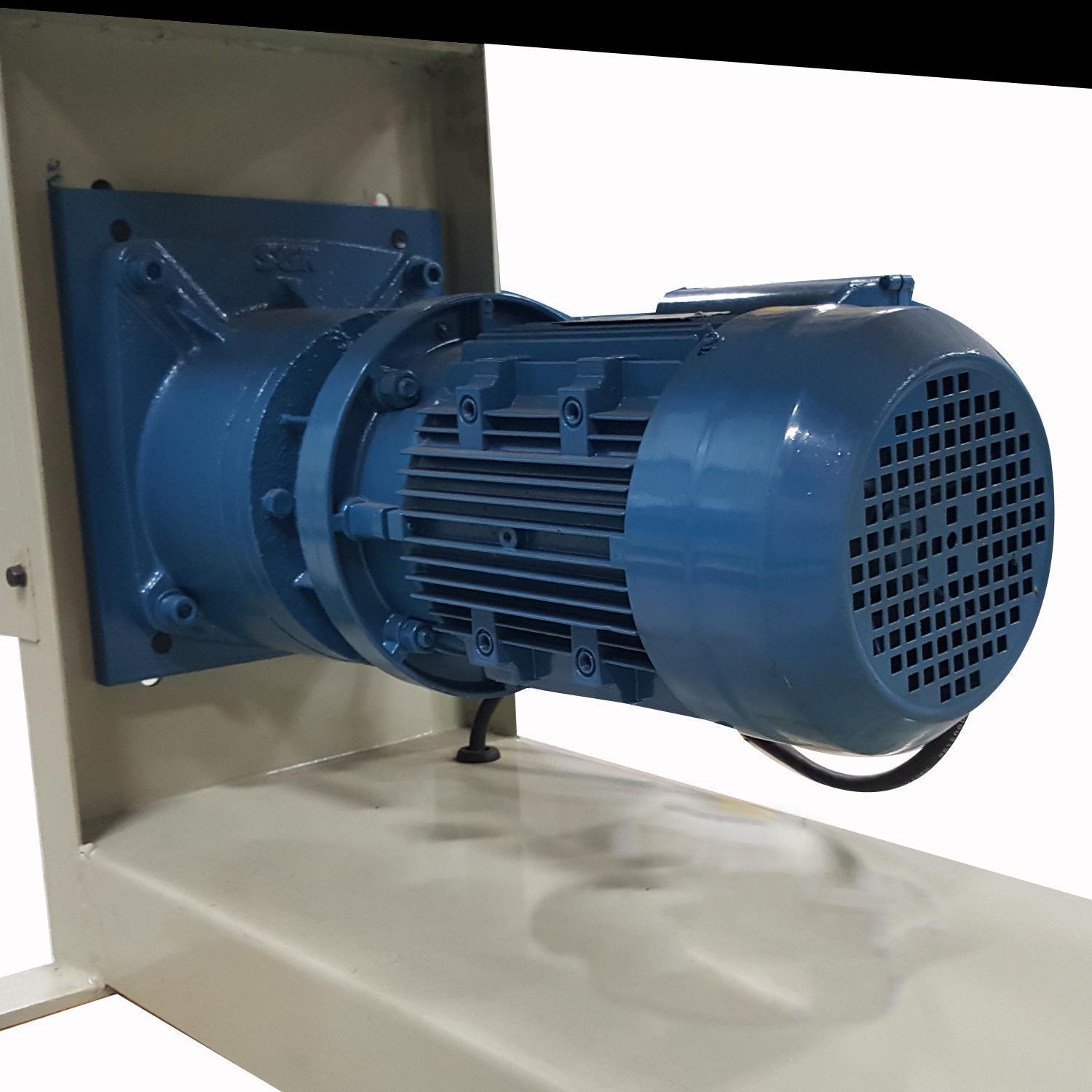

Motor 1.5hp (1.1kw)
Approx. Shipping Dimensions 71" x 24" x 44"
Approx. Shipping Weight 885 pounds
Based on a material tensile strength of mild steel 64,000 PSI
Stand yes

Equipped With

FEATURES:

This foot pedal-controlled electric slip roller is a durable, efficient choice for any HVAC shop or general fabrication shop. The steel plate frame and formed base maintain high accuracy.

  • 1 hp motor runs on 110-volt power, so it can operate anywhere.
  • 51” forming width.
  • Can bend 16 gauge mild steel across its full working width.
  • 2 driven rolls for more power.

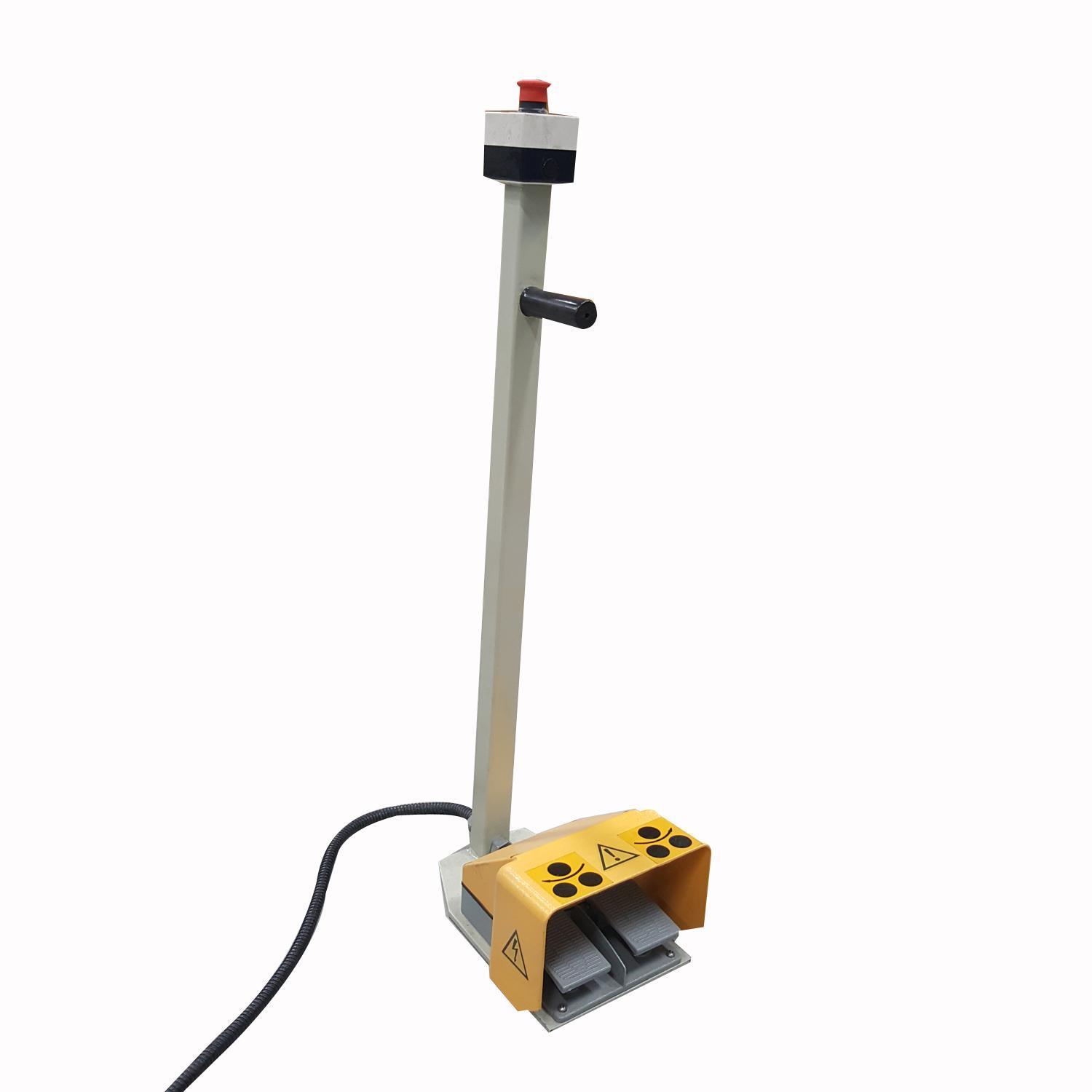

  • Easy to operate with a foot pedal for both left and right rolling applications.
  • Solid steel uprights on both the left and right sides make this one rigid machine.
  • Heavy-duty, fully formed steel base helps prevent deflection.
  • Built using only the highest grade components for years of long life.

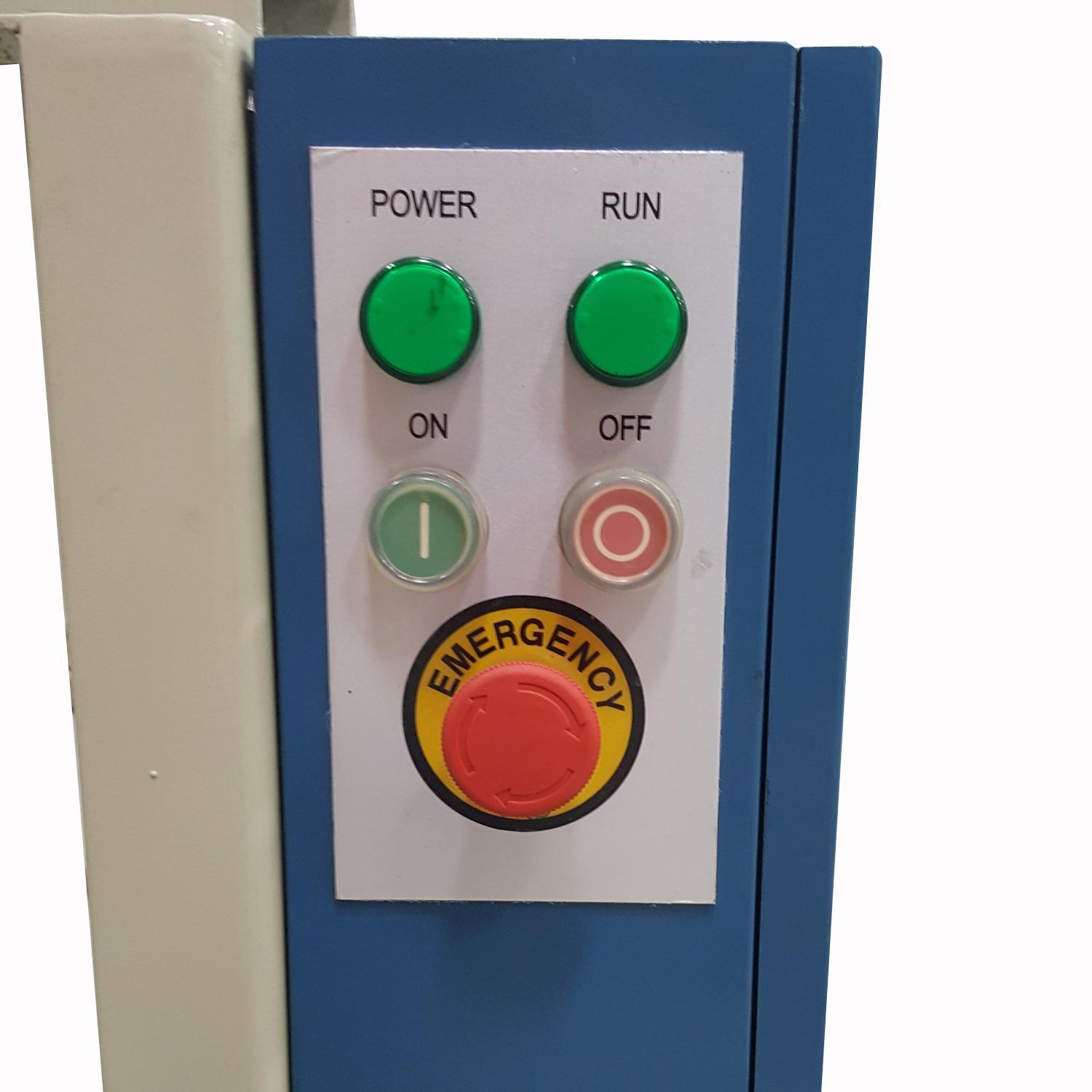

  • 3 integrated emergency stops for a safer workplace.
  • Covered by a 1-year parts warranty.
  • Comes with lifetime technical support by phone from our team of experienced reps.
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
SUBJECT TO STOCK
